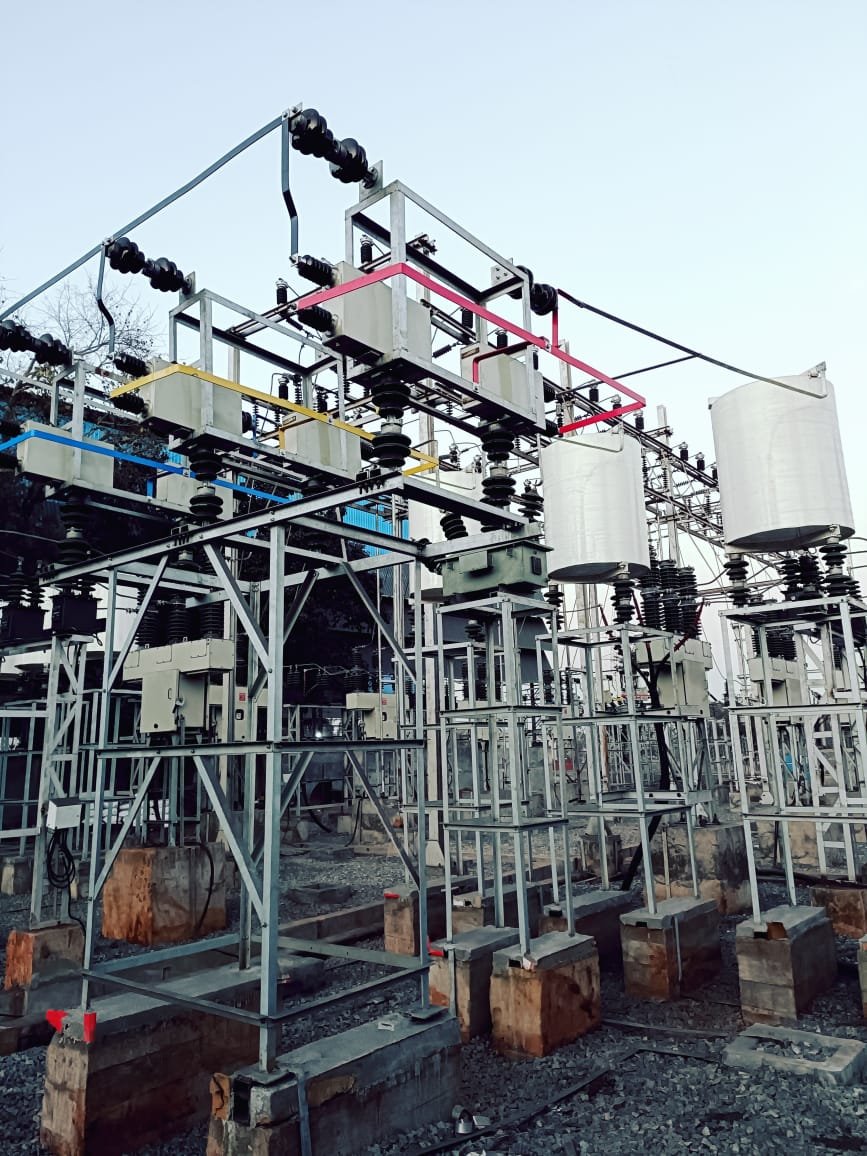

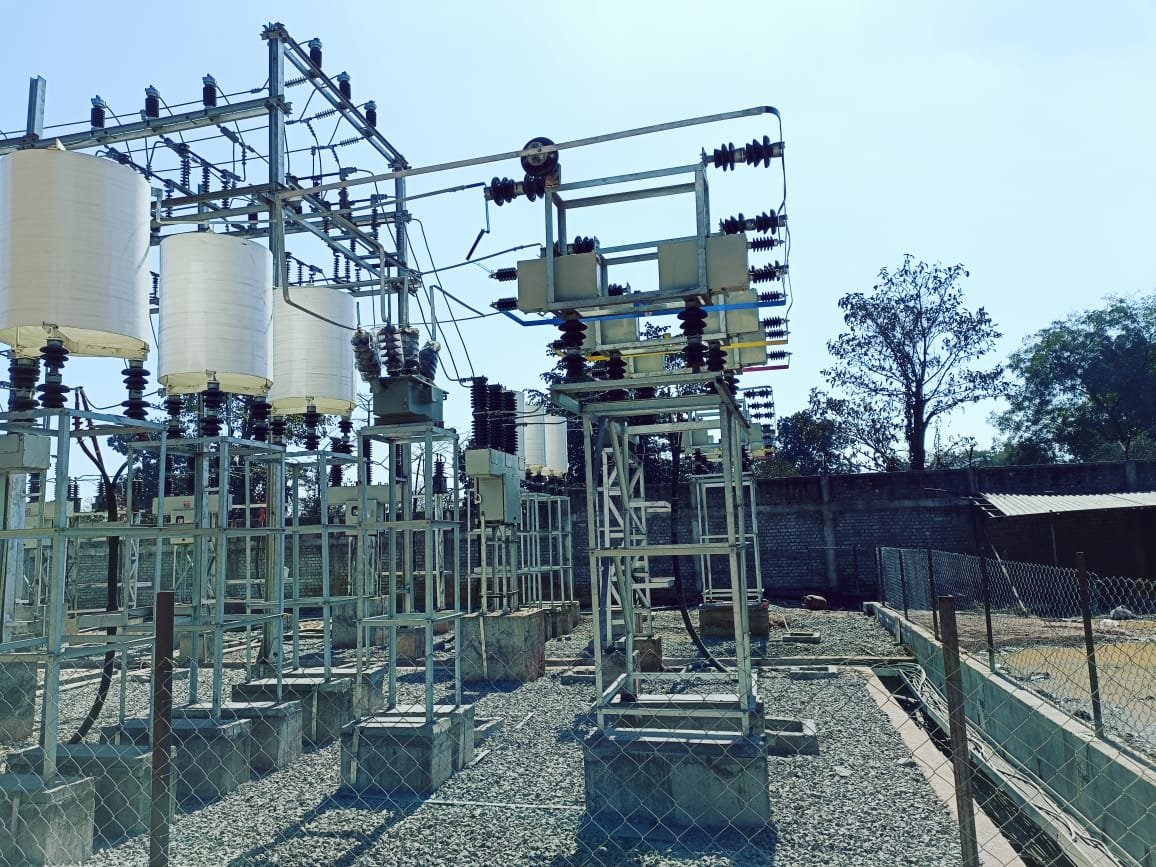

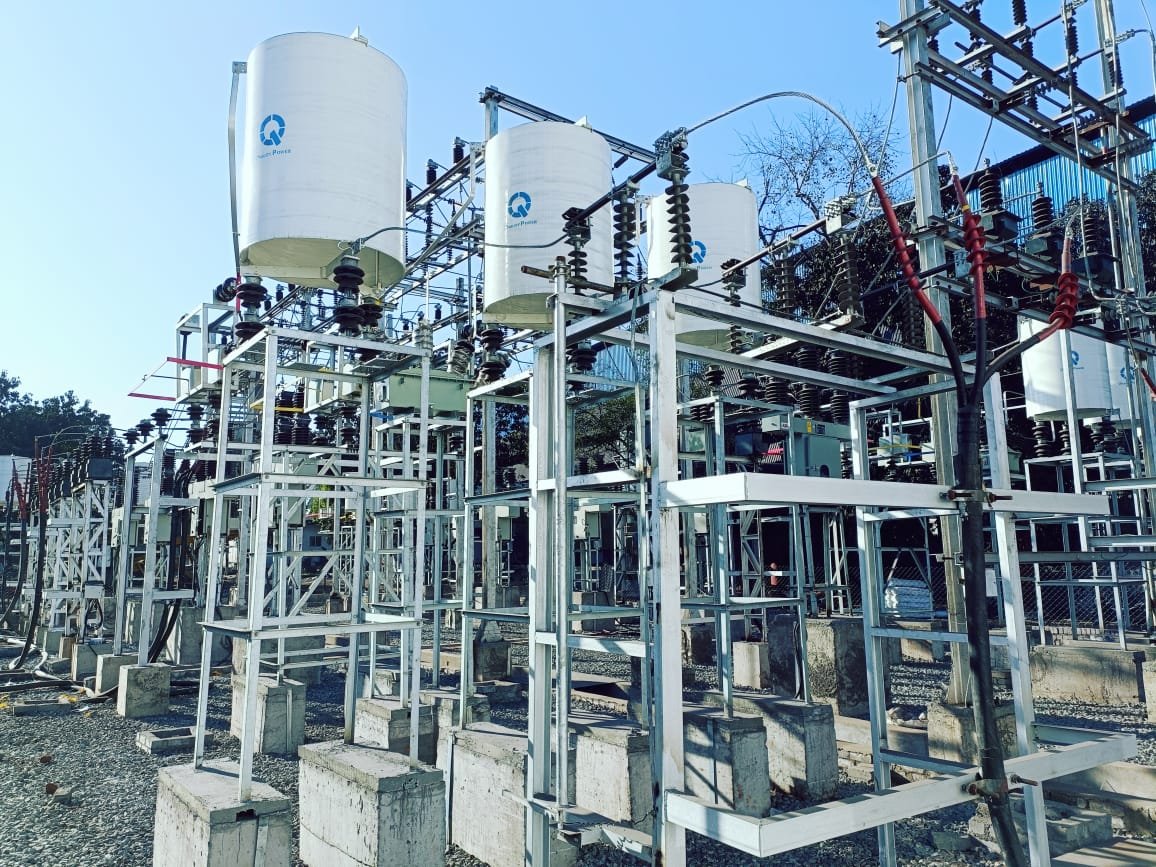

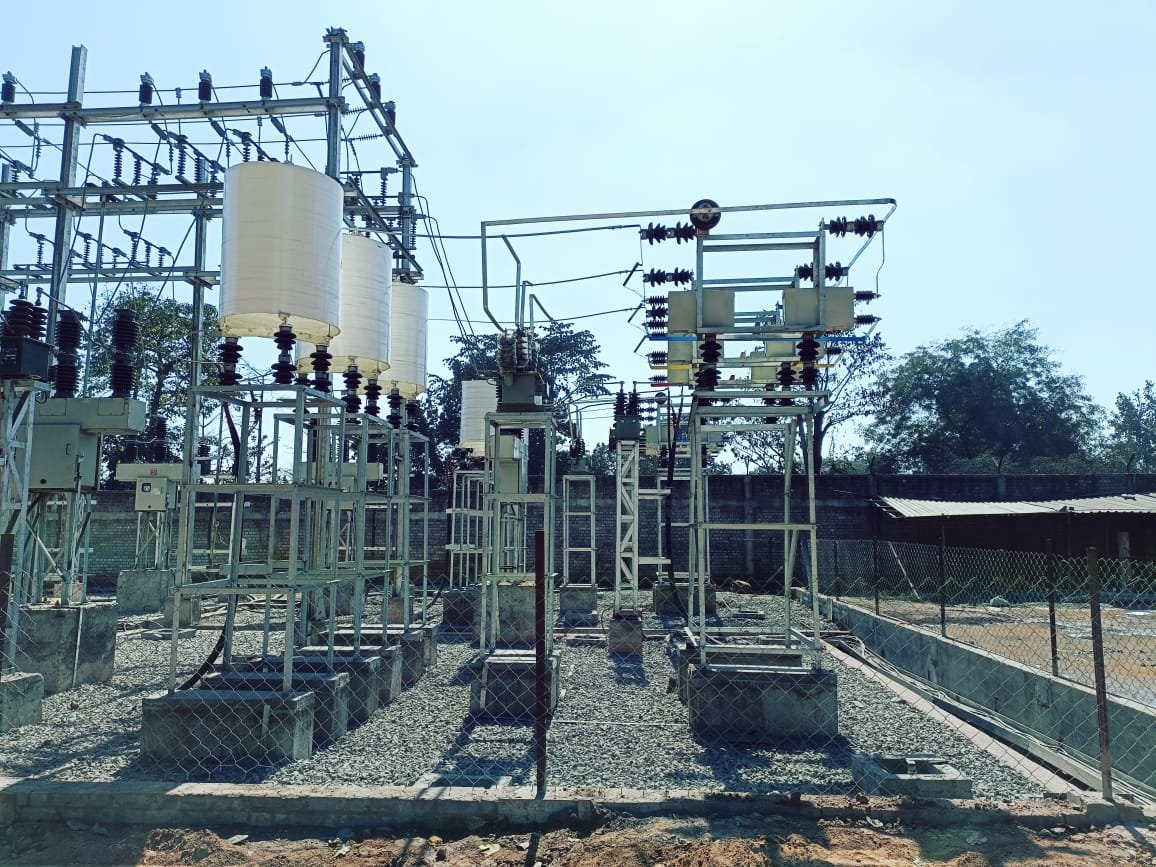

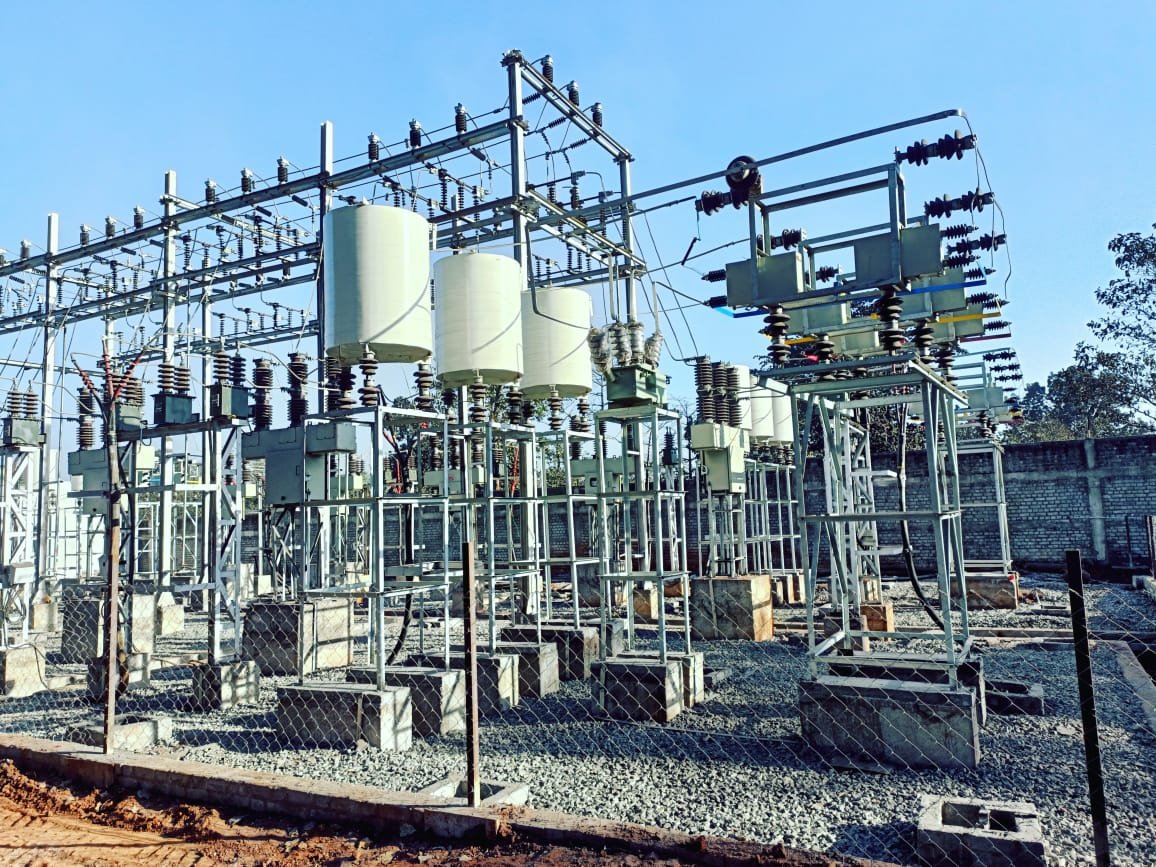

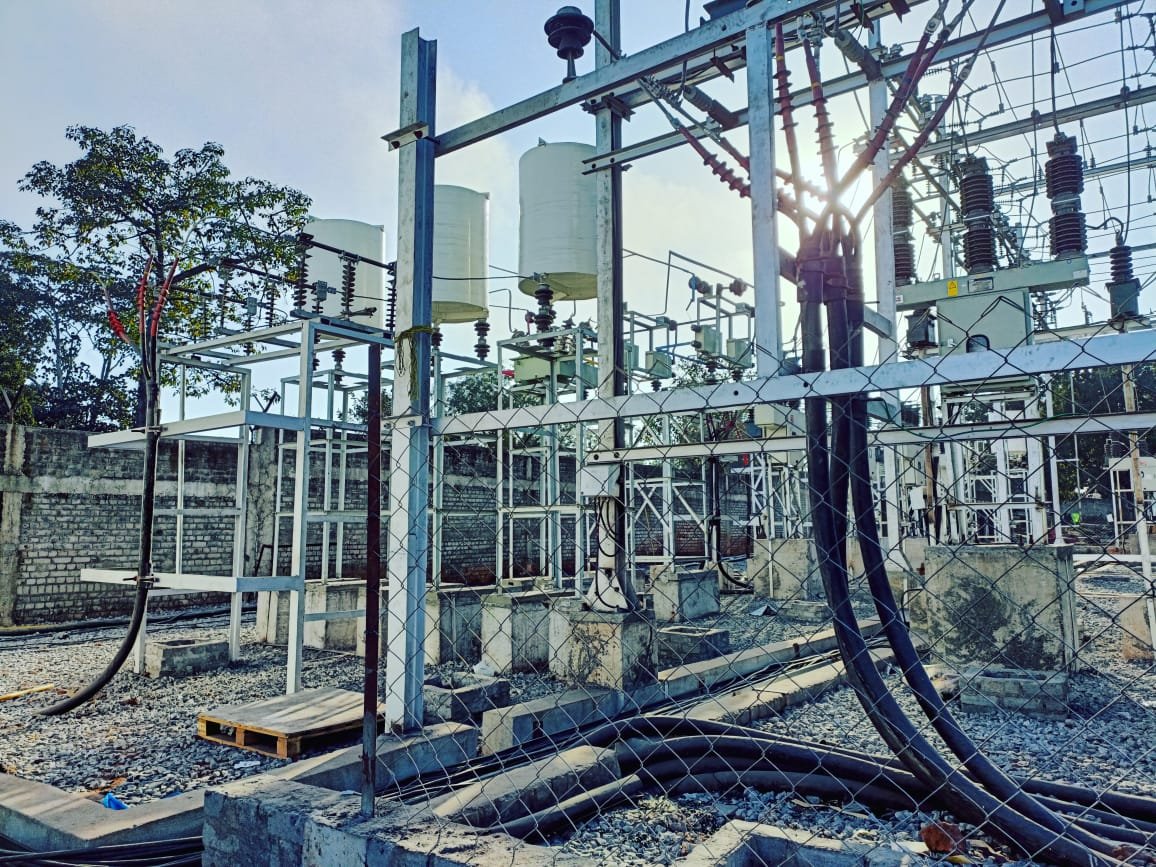

Medium & High Voltage Fixed / Automatic Reactive Power Compensation System (Outdoor Type)

The Medium & High Voltage Fixed / Automatic Reactive Power Compensation System (Outdoor Type) is designed to improve power factor, reduce reactive power demand, and enhance the efficiency of medium and high voltage electrical networks. Installed outdoors, the system uses capacitor banks with automatic switching and control to provide reliable voltage support, reduce transmission losses, and improve overall power system performance.

Voltage Class: 3.3 kV to 33 kV (or as per project requirement)
Frequency: 50/60 Hz
Fixed or Automatic Capacitor Bank Configuration
Outdoor, Weatherproof Enclosure
Vacuum Circuit Breaker (VCB) / SF6 Circuit Breaker (as required)
Capacitor Banks with Current Limiting Reactors (optional)
Microprocessor-based Control & Protection Relay
Lightning Arresters and Isolators
IP55/IP65 Protection (as required)
Designed as per IEC/IS Standards

Improves power factor and voltage regulation
Reduces reactive power demand and transmission losses
Automatic capacitor bank switching for varying loads
Weatherproof outdoor design for reliable operation
Advanced protection and monitoring system
High operational reliability and long service life
Low maintenance requirements
Compact and modular construction
Suitable for utility and industrial applications
Enhances overall power system efficiency and stability

Power Utilities
Electrical Substations
Steel Plants
Cement Industries
Mining Operations
Oil & Gas Facilities
Renewable Energy Plants
Industrial Manufacturing Plants
Distribution Networks
Large Infrastructure Projects

Medium & High Voltage Fixed / Automatic Reactive Power Compensation System (Outdoor Type)
