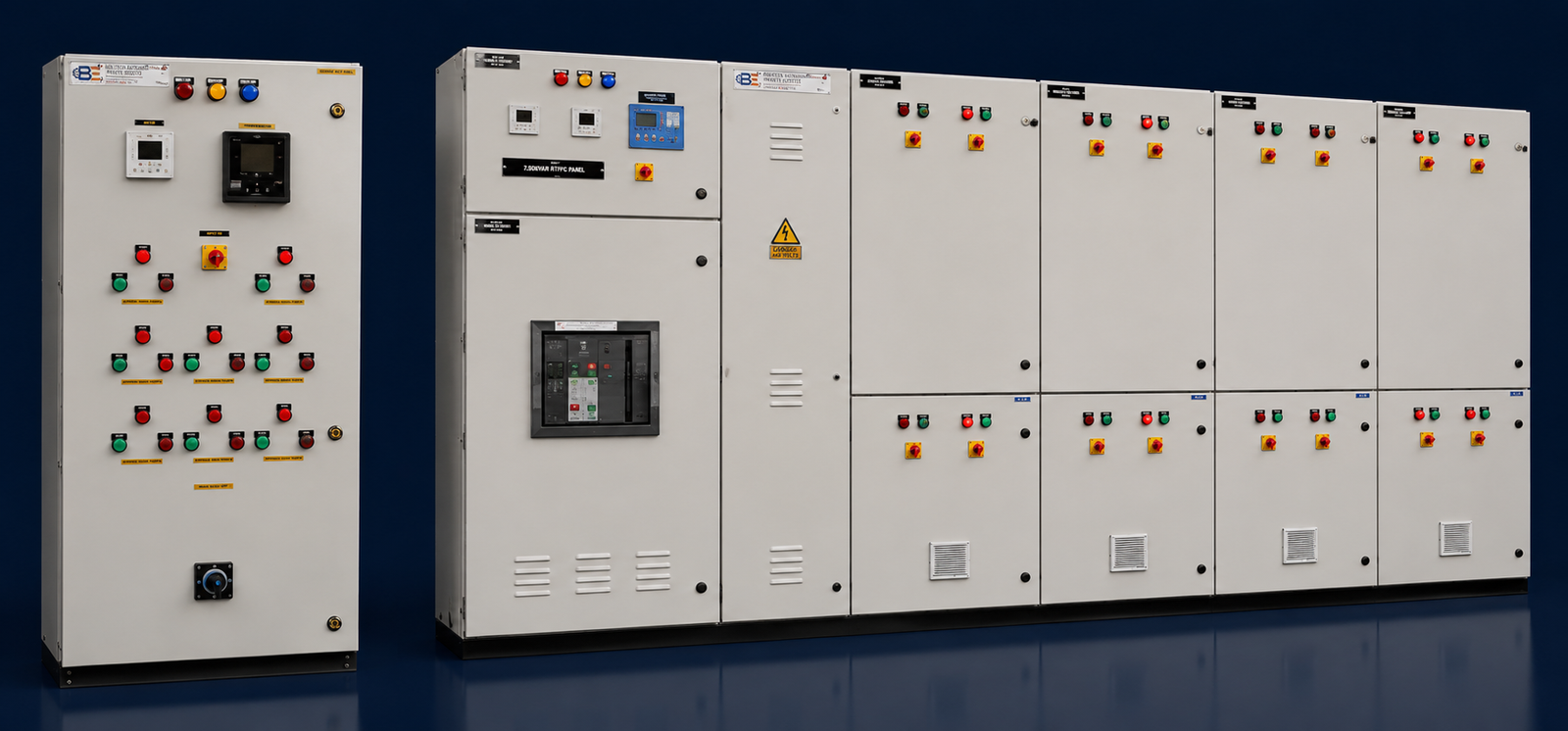

RTPFC Panel View 1

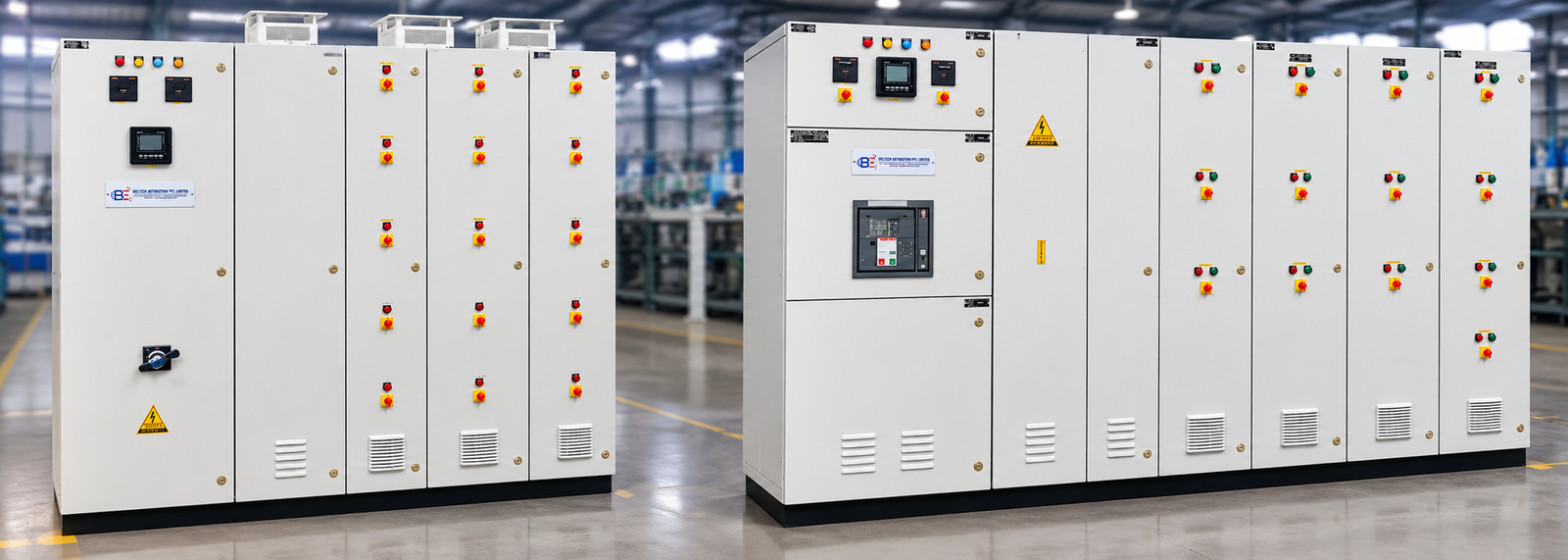

RTPFC Panel View 2

RTPFC Panel (Real Time Power Factor Correction Panel)

The RTPFC Panel (Real Time Power Factor Correction Panel) is an advanced power factor correction system that uses thyristor switching technology for instant capacitor bank operation. It provides real-time power factor correction in rapidly changing load conditions, ensuring stable voltage, improved power quality, and maximum energy efficiency.

  • Rated Voltage: 415V AC, 3 Phase, 50 Hz
  • Capacity: As per project requirement
  • APFC Controller with Real-Time Monitoring
  • Thyristor Switching Module
  • Heavy-duty Capacitor Banks
  • Copper/Aluminium Busbars
  • Powder-coated CRCA Enclosure
  • IP42/IP54/IP55 Protection (as required)
  • Digital Multifunction Meter
  • MCCB/ACB Incomer
  • Fast Response Time (typically less than 20 ms)
  • Designed as per IEC/IS Standards
  • Instant thyristor-based capacitor switching
  • Real-time power factor correction
  • No switching transients
  • Suitable for rapidly fluctuating loads
  • Improves power quality and system stability
  • Reduces reactive power and electricity penalties
  • Increases energy efficiency
  • Low maintenance and long service life
  • Reliable and compact design
  • Safe and continuous operation
  • Steel Plants
  • Rolling Mills
  • Cement Industries
  • Automotive Industries
  • Textile Industries
  • Paper & Pulp Industries
  • Plastic & Packaging Industries
  • Welding Applications
  • Power Distribution Systems
  • Industrial Plants with Rapidly Varying Loads

More Details

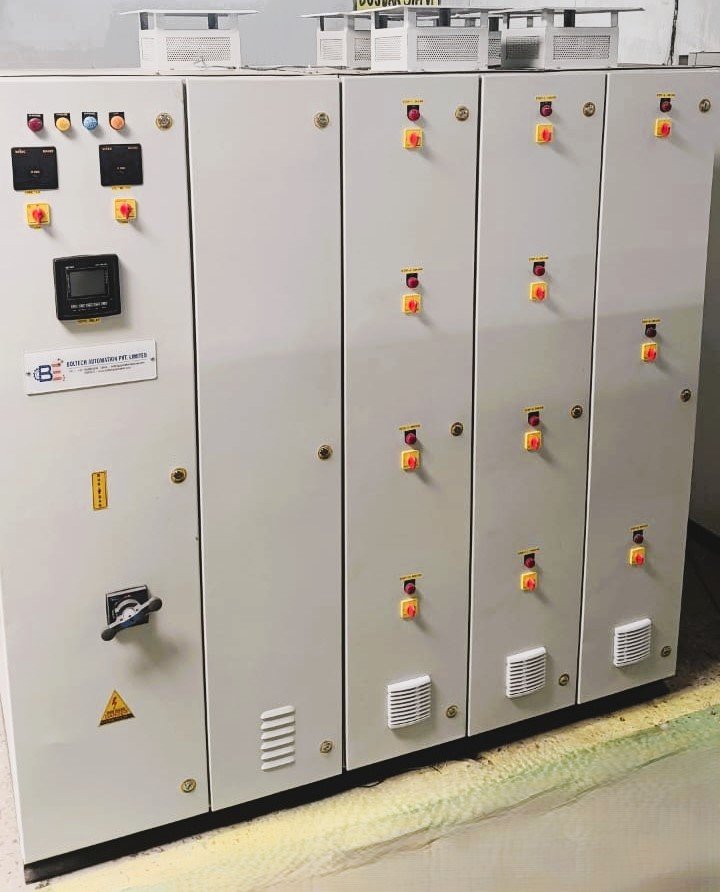

TSM Panel Detail 1

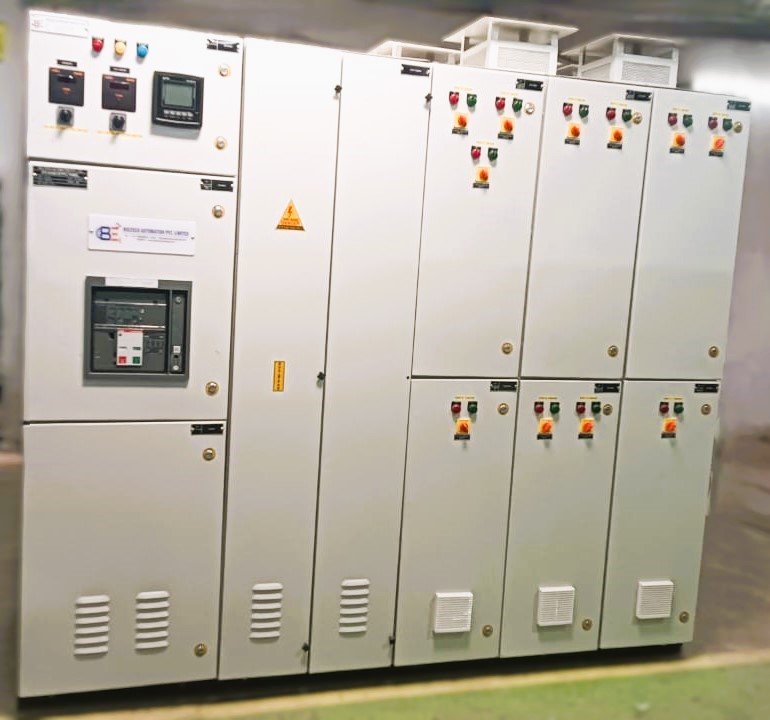

TSM Panel Detail 2

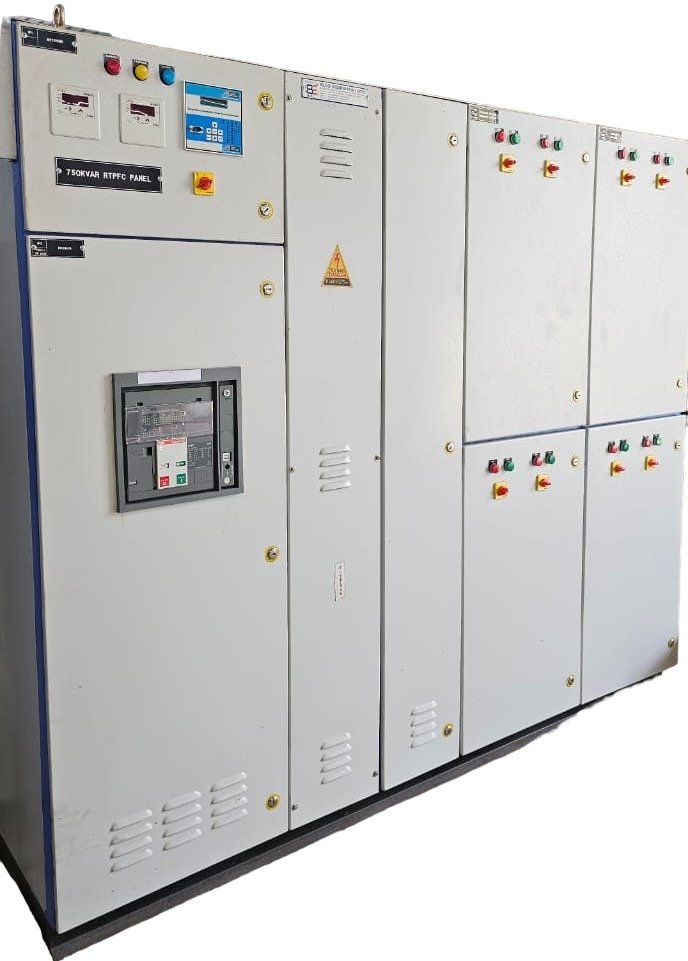

TSM Panel Detail 3

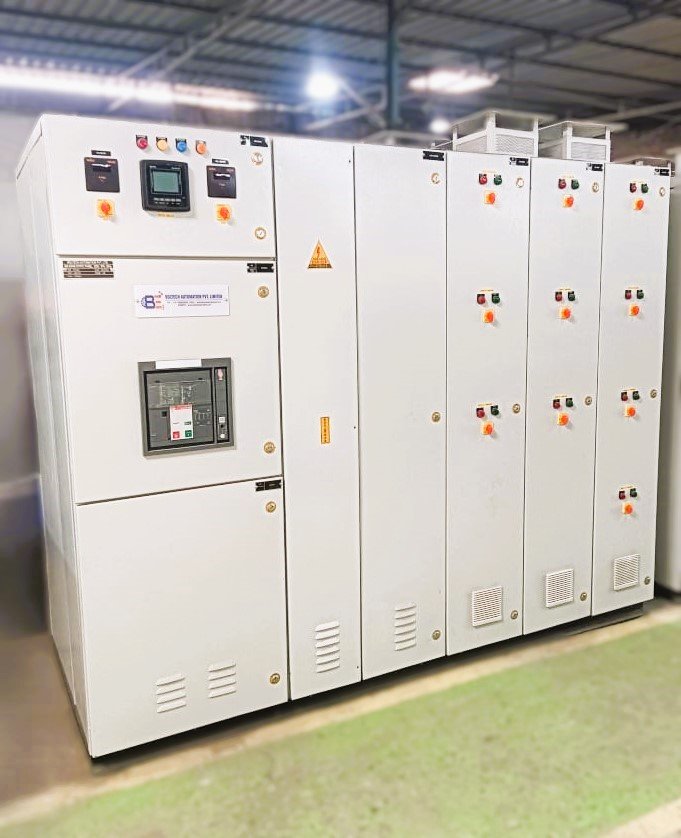

TSM Panel Detail 4
