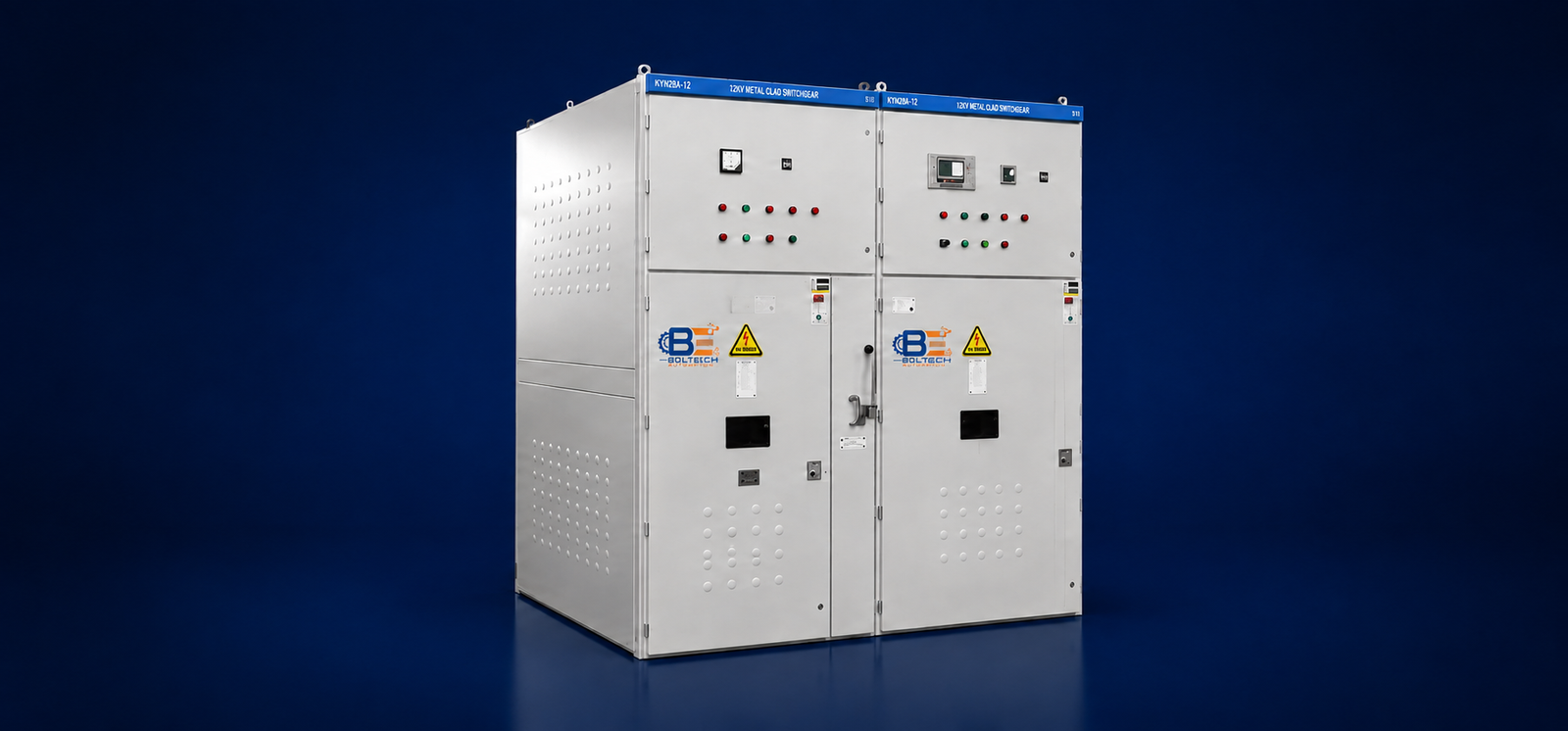

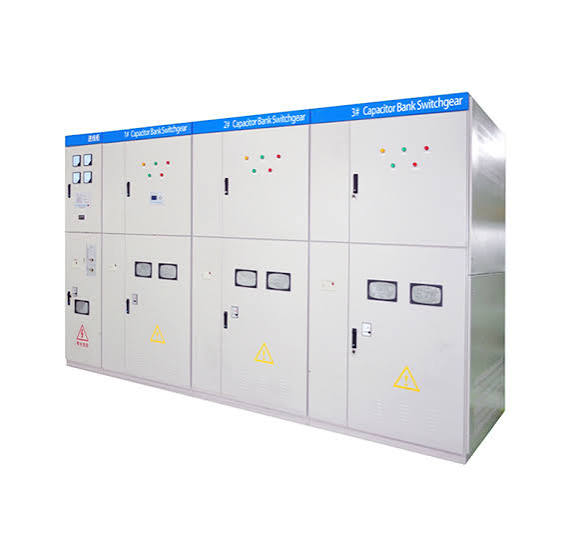

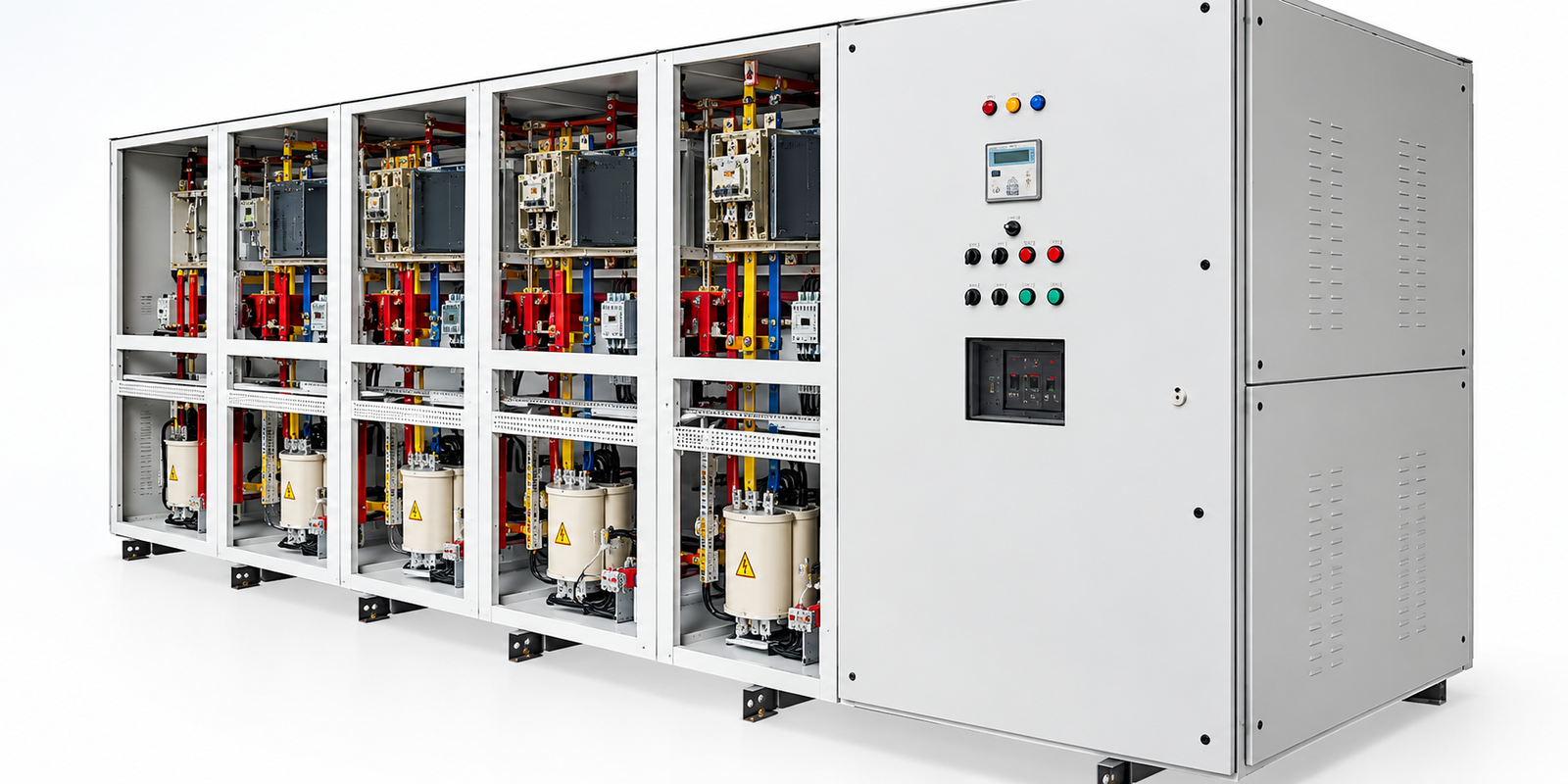

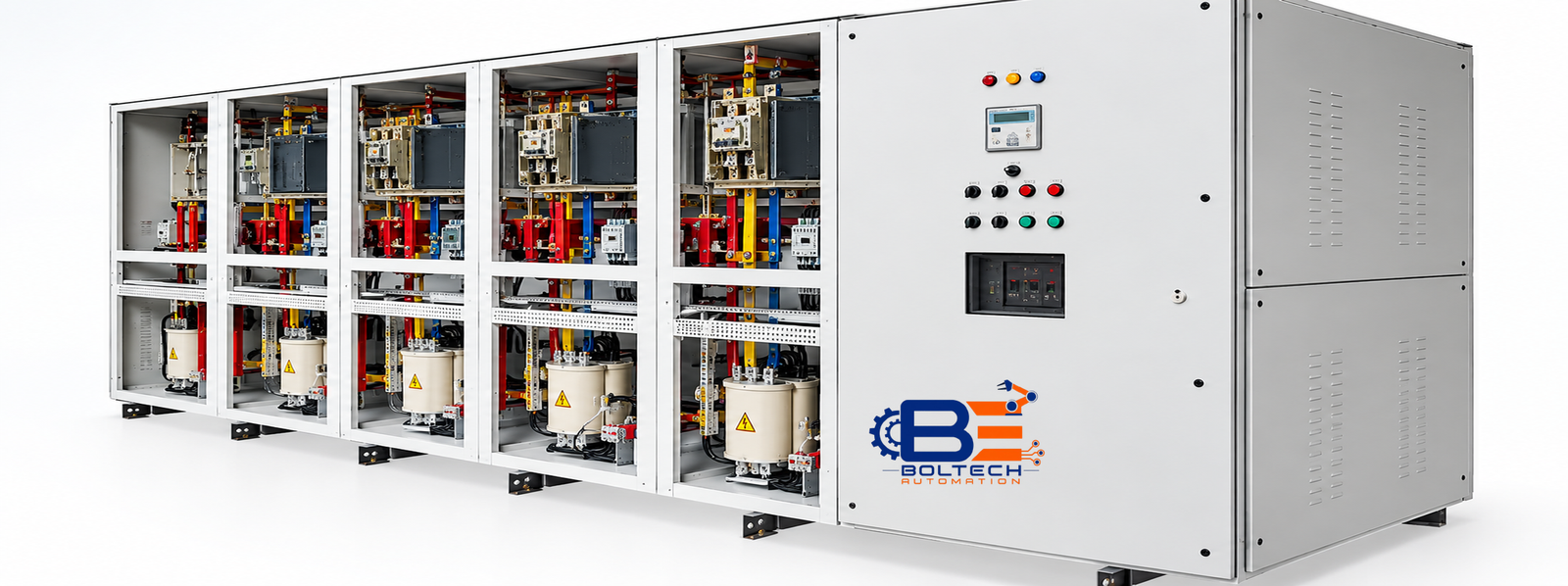

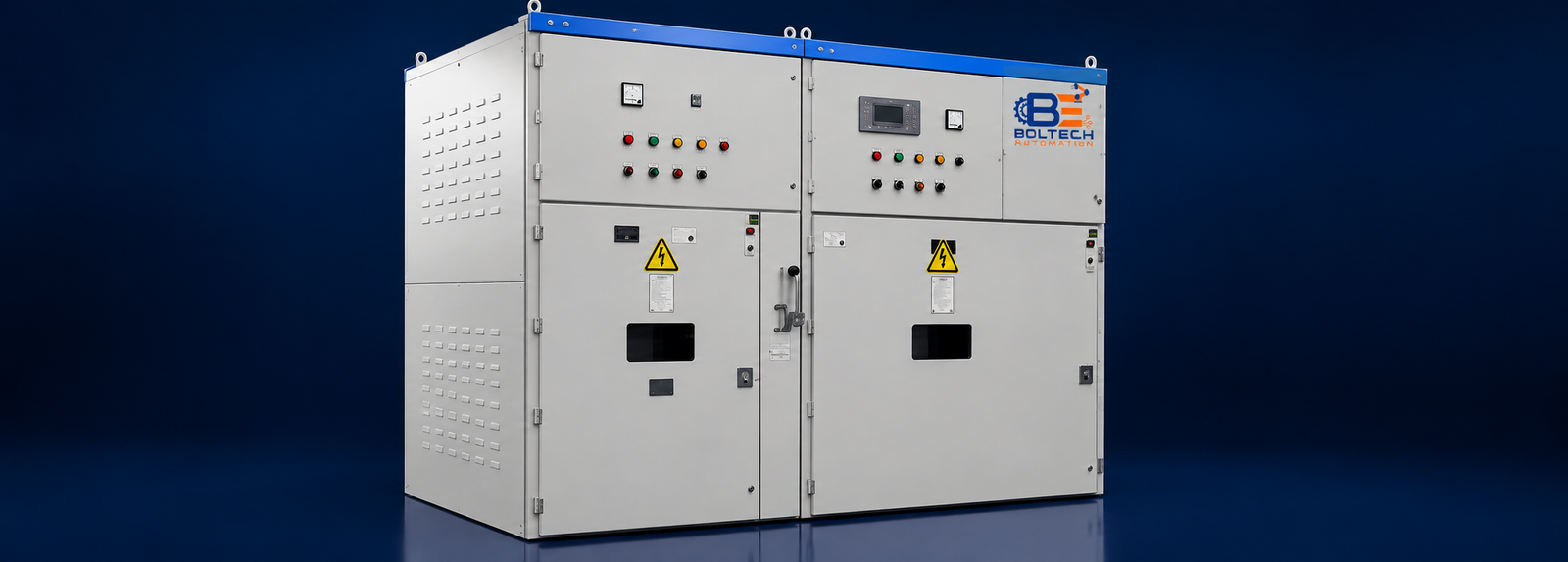

Medium & High Voltage Fixed / Automatic Reactive Power Compensation System (Indoor Type)

The Medium & High Voltage Fixed / Automatic Reactive Power Compensation System (Indoor Type) is designed to improve power factor, reduce reactive power demand, and enhance the efficiency of medium and high voltage electrical systems. Installed inside electrical substations or switchgear rooms, the system automatically switches capacitor banks based on load conditions, ensuring stable voltage, reduced energy losses, and improved power quality.

Voltage Class: 3.3 kV to 33 kV (or as per project requirement)
Frequency: 50/60 Hz
Fixed or Automatic Capacitor Bank Configuration
Indoor Metal-Enclosed Design
Vacuum Circuit Breaker (VCB) / Contactor Switching (as required)
Microprocessor-based APFC/Controller
Heavy-duty Capacitor Banks
Copper/Aluminium Busbars
Digital Protection & Monitoring Relays
Designed as per IEC/IS Standards

Automatic power factor correction for medium and high voltage systems
Improves voltage regulation and system stability
Reduces reactive power demand and energy losses
Intelligent capacitor bank switching
Compact indoor design with easy installation
High operational reliability and safety
Low maintenance and long service life
Advanced protection and monitoring features
Modular construction for future expansion

Electrical Substations
Steel Plants
Cement Industries
Power Generation Plants
Manufacturing Industries
Mining & Metals
Chemical & Petrochemical Plants
Paper & Pulp Industries
Commercial & Infrastructure Projects
Distribution Networks
